切比雪夫带阻滤波器设计 | Chebyshev BEF Calculator

2012-10-10 点击：0

[ How to use ]

1. Input resonant circuit number (n), center frequency (fc), bandwidth (BW),
characteristic impedance (Zo), ripple, and click on [ Calculate ] button.
2. A calculation result is indicated.

[ Note ] The number of resonant circuits is only an odd number individual.
(Even if an even number is inputted to n, 1 is added automatically,
and changed into the odd number.)

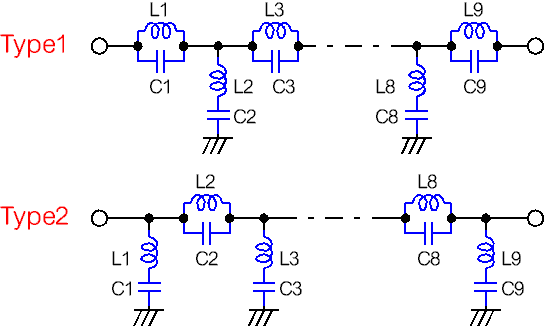

Type1	L1	L2	L3	L4	L5	L6	L7	L8	L9
										[nH]
	C1	C2	C3	C4	C5	C6	C7	C8	C9
										[pF]

Type2	L1	L2	L3	L4	L5	L6	L7	L8	L9
										[nH]
	C1	C2	C3	C4	C5	C6	C7	C8	C9
										[pF]
