NXP 公司的ISP1504x1是USB2.0收发器宏单元接口+低引脚接口(ULPI)OTG收发器,能以高速(480Mbps),全速(12Mbps)和低速(1.5Mbps)发送和接收USB数据,并提供最佳引脚,物理层前端附件到USB主设备,外设和OTG设备.因此非常适合用在手提电子设备如手机,数码相机,数字视频摄影机,PDA和数字音频设备等.本文介绍了ISP1504x1系列的主要特性,方框图, ISP1504x1和标准USB外设控制器应用电路, ISP1504x1和OTG控制器应用电路图, ISP1504x1和标准USB主控制器应用电路图以及ISP1504x1评估板UM10079方框图,电路图与材料清单(BOM).
The ISP1504A1; ISP1504C1 (ISP1504x1) is a Universal Serial Bus (USB) On-The-Go
(OTG) transceiver that is fully compliant with Universal Serial Bus Specification Rev. 2.0,
On-The-Go Supplement to the USB 2.0 Specification Rev. 1.2 and UTMI+ Low Pin
Interface (ULPI) Specification Rev. 1.1.
The ISP1504x1 can transmit and receive USB data at high-speed (480 Mbit/s), full-speed
(12 Mbit/s) and low-speed (1.5 Mbit/s), and provides a pin-optimized, physical layer
front-end attachment to the USB host, peripheral and OTG devices.
It is ideal for use in portable electronic devices, such as mobile phones, digital still
cameras, digital video cameras, Personal Digital Assistants (PDAs) and digital audio
players. It allows USB Application-Specific Integrated Circuits (ASICs), Programmable
Logic Devices (PLDs) and any system chip set to interface with the physical layer of the
USB through a 12-pin interface.
The ISP1504x1 can interface to devices with digital I/O voltages in the range of 1.65 V to
3.6 V. The ISP1504x1 is available in TFBGA36 package.
ISP1504x1主要特性:
Fully complies with:
Universal Serial Bus Specification Rev. 2.0
On-The-Go Supplement to the USB 2.0 Specification Rev. 1.2
UTMI+ Low Pin Interface (ULPI) Specification Rev 1.1
Interfaces to host, peripheral and OTG device cores; optimized for portable devices or
system ASICs with built-in USB OTG device core
Complete Hi-Speed USB physical front-end solution that supports high-speed
(480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s)
Integrated 45 -10 % high-speed termination resistors, 1.5 k5 % full-speed
device pull-up resistor, and 15 k5 % host termination resistors
Integrated parallel-to-serial and serial-to-parallel converters to transmit and receive
USB clock and data recovery to receive USB data at 500 ppm
USB data synchronization from 60 MHz input to 480 MHz output during transmit
Insertion of stuff bits during transmit and discarding of stuff bits during receive
Non-Return-to-Zero Inverted (NRZI) encoding and decoding
Supports bus reset, suspend, resume and high-speed detection handshake (chirp)
Complete USB OTG physical front-end that supports Host Negotiation Protocol (HNP)
and Session Request Protocol (SRP)
ISP1504x1应用:
Digital still camera
Digital TV
Digital Versatile Disc (DVD) recorder
External storage device, for example:
Zip drive
Magneto-Optical (MO) drive
Optical drive: CD-ROM, CD-RW, CD-DVD
Mobile phone
MP3 player
PDA
Printer
Scanner
Set-Top Box (STB)
Video camera
图1.ISP1504x1方框图
图2. ISP1504x1和标准USB外设控制器应用电路
Using the ISP1504x1 with a standard USB Peripheral Controller; external crystal
图3. ISP1504x1和OTG控制器应用电路图
Using the ISP1504x1 with an OTG Controller; external 5 V source with built-in FAULT and external square wave input on pin XTAL1
图4.ISP1504x1和标准USB主控制器应用电路图
Using the ISP1504x1 with a standard USB Host Controller; external 5 V source with built-in FAULT and external crystal
ISP1504x1 ULPI收发器评估板UM10079
UM10079:ISP1504A1; ISP1504C1 ULPI transceiver evaluation board, supporting Hi-Speed USB host, peripheral and OTG
The ISP1504A1; ISP1504C1 (ISP1504x1) is an 8-bit bidirectional UTMI+ Low Pin
Interface (ULPI) transceiver, which provides a Hi-Speed Universal Serial Bus (USB)
analog front-end solution to Application-Specific Integrated Circuits (ASICs) and Field
Programmable Gate Arrays (FPGAs) to implement as a Hi-Speed USB host, peripheral
or OTG device.
The ISP1504x1 evaluation (eval) board allows designers to evaluate the features of the
ISP1504x1, and conduct system-level validation and testing. The eval board interfaces to
the link through a 100-pin Transceiver and Macrocell Tester (T&MT) connector that
complies with USB 2.0 Transceiver and Macrocell Tester (T&MT) Interface Specification
Ver. 1.2.
ISP1504x1 ULPI收发器评估板UM10079功能:
The ISP1504x1 is fully compliant with Universal Serial Bus Specification Rev. 2.0,
UTMI+ Low Pin Interface (ULPI) Specification Rev. 1.1 and On-The-Go Supplement
to the USB 2.0 Specification Rev. 1.3.
The T&MT connector interface is fully compliant with USB 2.0 Transceiver and
Macrocell Tester (T&MT) Interface Specification Ver. 1.2.
The VBUS power must be supplied by the on-board power switch.
Adjustable VCC voltage when powered by the 5 V DC power supply.
Flexible clock source for the ISP1504x1: on-board crystal or square wave clock
driven into the XTAL1 input.
ISP1504A1; ISP1504C1 ULPI transceiver eval board
图5.ISP1504x1评估板UM10079方框图
图6.ISP1504x1评估板UM10079电路图(1)
图7.ISP1504x1评估板UM10079电路图(2)

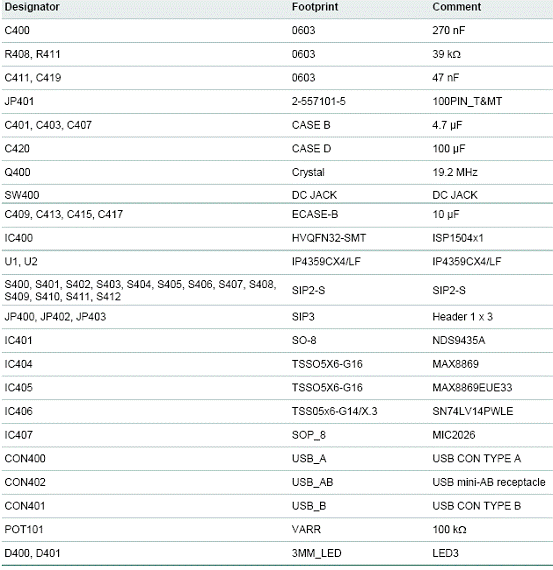

ISP1504x1评估板UM10079材料清单(BOM):
详情请见:
http://www.nxp.com/acrobat_download/datasheets/ISP1504A1_ISP1504C1_1.pdf
和
http://www.nxp.com/acrobat_download/usermanuals/UM10079_2.pdf
